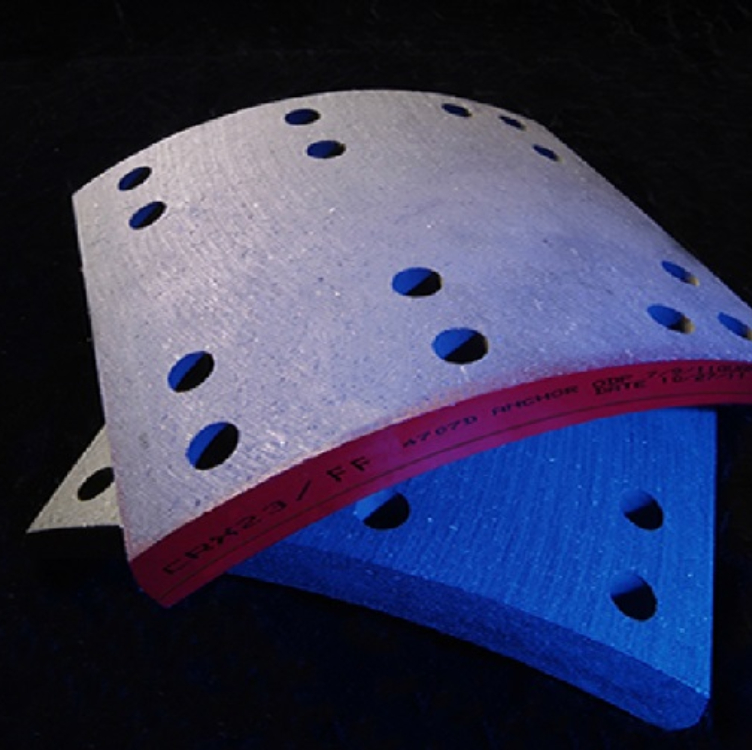

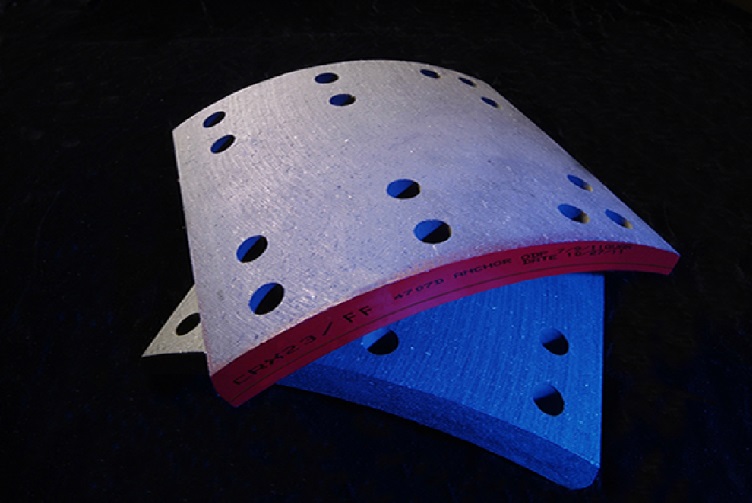

ProTec CRM 25,000-lb axle rated semi-metallic material is a rugged, dense, heavy duty and severe service block. CRM offers enhanced friction performance for maximum stopping power with low lining and drum wear rates across all applicable temperature ranges. ProTec’s unique blend of insulating fibers, bonding resins and advanced graphites transfer heat away from lining/drum interface thus extending wear life while minimizing brake fade and noise.

Recommended applications include garbage, cement, petroleum transportation, mining, logging, and transit bus. Also available as Coolrunner Combo set with CRX.

Compares with Marathon TS/MBC/MBS and Abex 6028.

All linings are produced in ISO-9001, V2008 quality control standards.

Contact Us for Catalogs & Pricing
CRM

CRM Specifications

Friction Average SAE-J661A
Normal (to 450 F) 0.54
Hot (450-650 F) 0.46

GAWR: 25,000 Lbs @ 165/180 AL

Temperature Range: 1000 degrees F

Drum Use Ratio: Positive

Stopping Power: Superior

Resistance to Fade: Excellent

Hot Stop Effectiveness: Excellent

Cold Stop Effectiveness: Excellent

Recovery: Excellent

Swell and Growth SAE-J160 Max: 0.008”-0.0010”

The above test data is provided for informational purposes and represents standards in controlled laboratory settings. Actual performance will vary by application and operating conditions.
