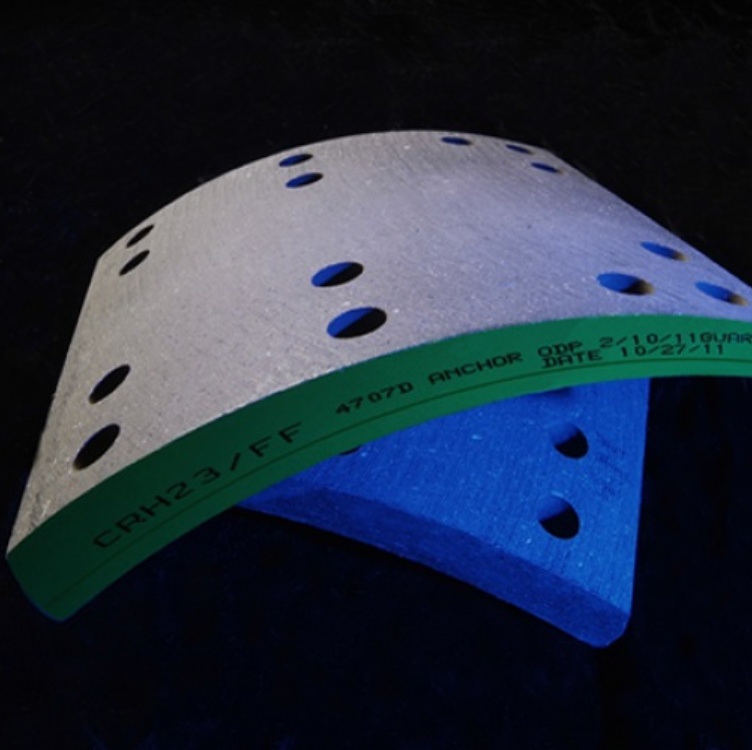

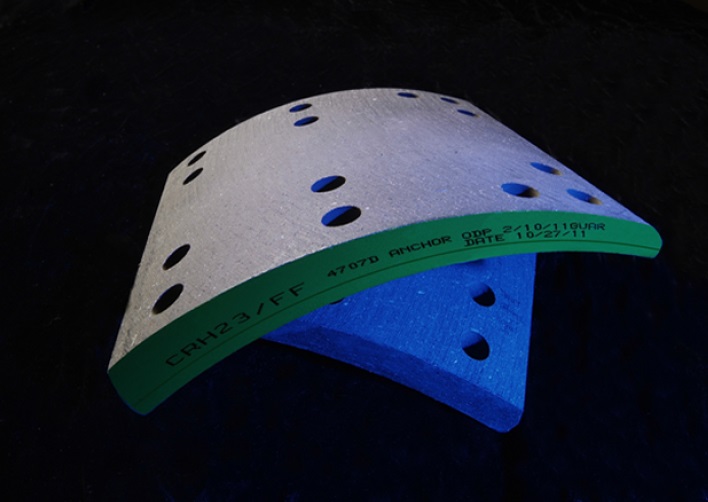

ProTec CRH Heavy Duty 23,000-lb axle-rated rigid molded material delivers rock-solid stopping power, extended wear across all operating temperature ranges, and superior resistance to brake fade. ProTec’s unique blend of insulating fibers, bonding resins and advanced graphites transfer heat away from lining/drum interface thus extending wear life while minimizing brake fade and noise.

CRH offers reliable cost savings while striking the perfect compromise between stopping power and extended wear.

Recommended applications include single and tandem axle tractor/trailers such as car-carriers, and tankers.

Compares with MarathonUB/DB/FLOE and Abex 6008-1.All linings are produced according to ISO-9001/V2008

Contact Us for Catalogs & Pricing

CRH Specifications

Friction Average SAE-J661A
Normal (to 450 F) 0.40
Hot (450-650 F) 0.38

GAWR: 23,000 Lbs @ 165/180 AL

Temperature Range: 700 degrees F

Drum Use Ratio: Positive

Stopping Power: Excellent

Resistance to Fade: Excellent

Hot Stop Effectiveness: Excellent

Cold Stop Effectiveness: Excellent

Recovery: Excellent

Swell and Growth SAE-J160 Max: 0.343 to 0.360

The above test data is provided for informational purposes and represents standards in controlled laboratory settings. Actual performance will vary by application and operating conditions.
