Thermotech 120

TTP120 has an enhanced structure designed to provide superior energy capability, good engagement characteristic, low wear and long service life.

• Low ratio of static to dynamic coefficient of friction for enhanced engagement characteristics
• Smooth engagement
• Excellent energy capability
• Good wear resistance

TYPICAL APPLICATIONS Wheel Brakes, Transmissions, Power Shift and Power Take-Off Transmissions

MATING MATERIAL Steel, Cast Steel, Grey Cast Iron
Surface Finish < 0.5μm Ra (20μ")

Friction Material Data

FRICTION COEFFICIENT (WET)
Static 0.13 – 0.16
Dynamic 0.11 – 0.14

RECOMMENDED LOAD
Max Dynamic Pressure 3.2 N/mm2 (464 lbf/in2)
Max Rubbing Speed 45 m/s (130 ft/sec)
Max Specific Power 4.0 W/mm2 (3.4 HP/in2)

OIL GROOVING

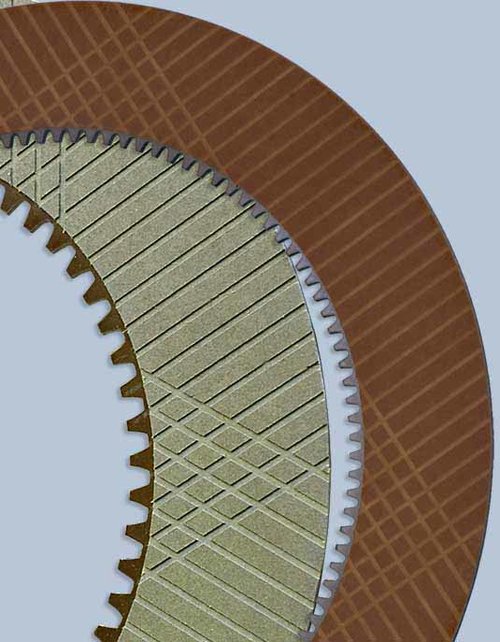

• Multi-pass tangential groove patterns in variety of configurations
• Grooves can either be pressed or machined

DIMENSIONS
Friction Thickness 1.5 mm (0.060″) max / 0.40 mm (0.016″) min
Friction Diameter 1,000 mm (39″) max / 50 mm (2″) min
