Thermofiber 8810

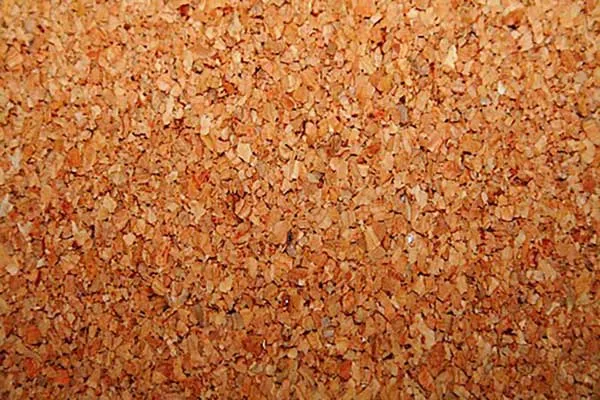

Cork is a natural material harvested from trees. Cork is used in friction applications such as paper dispensing systems and delicate transport packaging where it is valued for providing resistance and cushioning. Cork’s balance of adherence and resiliency makes it an excellent choice for clutch facing material in braking systems and as a die ejection material for the corrugated box industry.
AVAILABLE FORMS Rubberized Cork Sheets
TFC8810 Technical Data
CORK GRAIN SIZE 0.5-1.0mm
PHYSICAL PROPERTIES
Hardness 75-80 (Shore-A)
Compressibility at 400 PSI 15-25%
Recovery After 75% Min
Tensile Strength (KgF/cm2) 19 Min
FLEXIBILITY
Thickness x3 No Cracks
SPECIFIC GRAVITY 0.70-0.90
COMPRESSION SET 90% Max
SIDE FLOW 18% Max
The above test data is provided for informational purposes and represents standards in controlled laboratory settings. Actual performance will vary by application and operating conditions.
